Electrical Spec. |
Options | ||
|
Rating voltage |
380VAC |
Flange for set up |
|
|
Rating current |
5A /Ring，10A /Ring，15A /Ring |

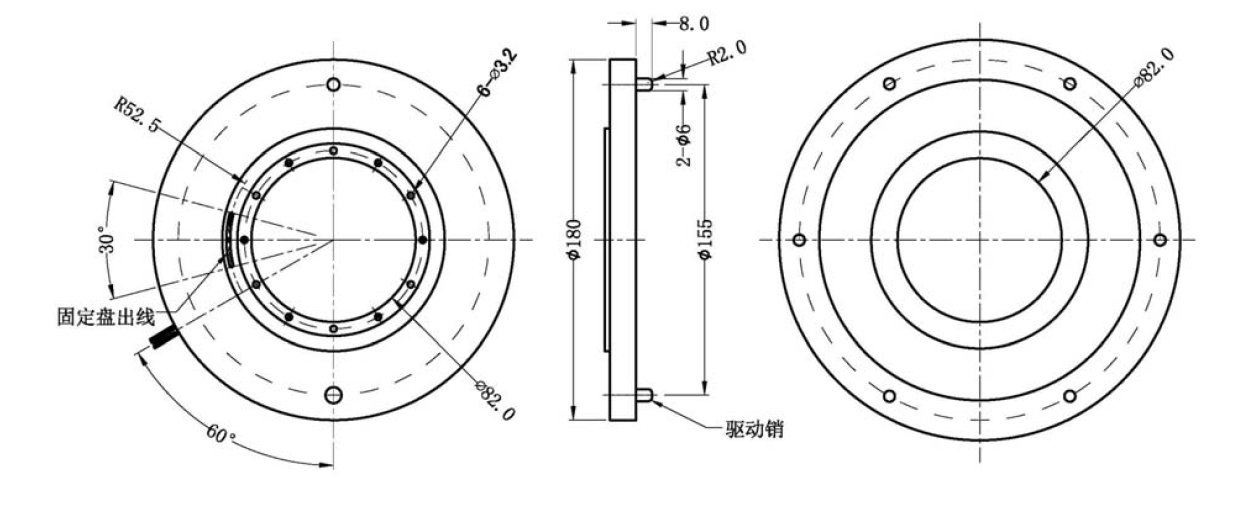

size:38mm to 2m outside diameter(depend on circuits),and 10mm Min length |
|
|
Insulation resistance |
1000MΩ@500VDC |
Can combine more circuits:1-100Ring |
|
|
Dielectric strength |
600VDC@50Hz |
Higher voltage and current capacity |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
Various radial exits are available |
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
-40℃~+80℃ |
|
Torque |
40N.cm |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 (IP68Options) |
Humidity |
10% to 90% RH non-condensing |
|
Contact material |
Precious Metal |
Materials |
Lead Free,RoHS compliant |
|
Lead Wire |
12color 0.5mm2Teflon wire |
CE Certified |
YES |
|
Life |
50million revolutions |
|
|
The Specification show a sample only , more information , please contact us
|
¤ Feature ?Compact miniature design , small size fit for harsh space ?Moudel design ; Meet the most requirement ?More install method for option ?Can combine signal and power in same slip ring ?Meet the requirement of industrial field
|
|
|

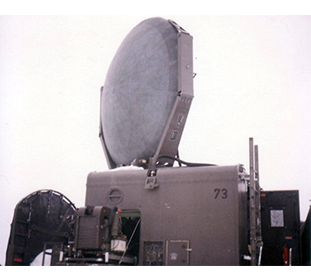

¤ Typical Application ?Satellite Receiver ?Elrctrical test equipment ?Test Table ?Radar |
 |
