Electrical Spec. |
Options | ||
|

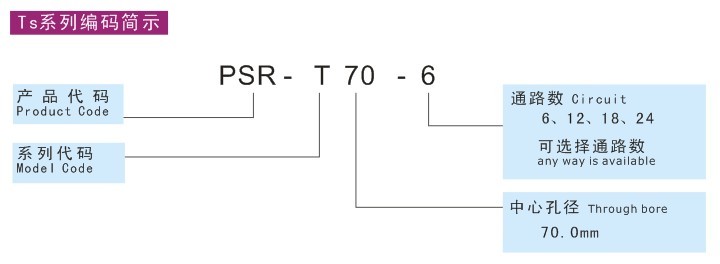

Circuit |
6-300 |
Flange for set up |
|
|
Rating voltage |
380VAC |
The wire exit direction,length is optional |
|
|
Rating current |
5A /Ring，10A /Ring，15A /Ring |
Can combine more circuits:1-300Ring |
|
|
Insulation resistance |
1000MΩ@500VDC |
Higher voltage and current capacity |
|
|
Dielectric strength |
600VDC@50Hz |
Higher rotational seed:1000Rpm、2500Rpm、5000Rpm、10000Rpm |
|
|
Electrical noise |
10mΩ@6VDC,50mA, 5Rpm |
||
|
Mechanical Spec |
Environment |
||
|

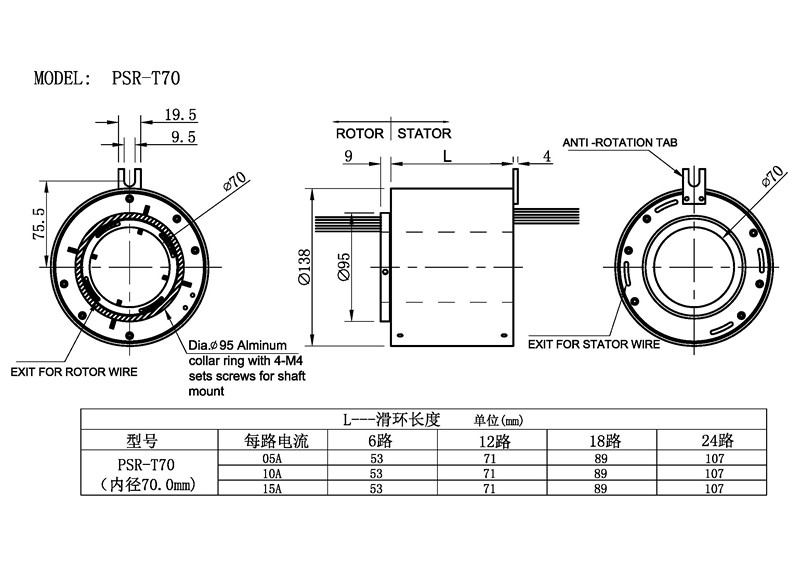

Through bore |
70mm |
Working temperature |
-40℃~+80℃ |
|
Speed |
300Rpm |
Mechanical vibration |
MIL-SID-810E |
|
Torque |
40N.cm |
Humidity |
10% to 90% RH non-condensing |
|
Seal class |
IP54 (IP68Options) |
Materials |
Lead Free,RoHS compliant |
|
Contact material |
Precious Metal |
CE Certified |
YES |
|
Lead Wire |
12 color Teflon wire |
|
|
|
Life |
30million revolutions |
|
|
?Fiber brush technology provides maintenance free operation-no cleaning or lubrication requirement
?Moudel design ;Meet the most requirement
?More install method for option
?Can combine signal and power in same slip ring
?Con combine more circuits: 1-100Ring
|
|
|

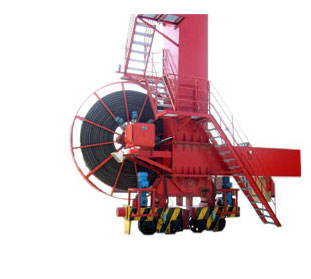

¤ Typical Application ?Pharmaceutcal Machinery ?Electrical equipment ?Cabel Reels ?Rotating platform ?Packaging Machinery
|
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring)

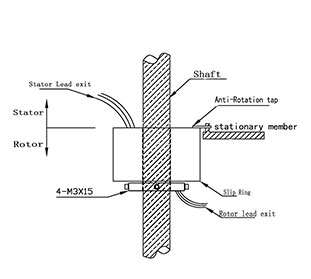

2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
|
|
|
|
CAUTION: Because of possible geometric mismatching between the customer's application and the slip ring,'hard mouting'of both ends of the slip ring(i.e.securing the rotor and stator such that there is no floating during operation) is not recommended and may cause premature failure. |
|
 |
